Welding
- ABB Robot Miller Autoaxcess 450 Mig Welder with flexarc 250 work station and 2 rotary Weld positioners
- ABB Robot Miller AutoInvision 450 Mig Welder with rotary Weld positioner
-ABB Robot Fronius 3200 Mig Aluminum welder with Headstock positioner and integrated material handler ABB Robot
- Mig welding Aluminum, Steel, Stainless
- Tig welding Aluminum, Steel, Stainless, Chromoly
- Rotary weld positioners for a clean single start/stop round work
- AWS Certified
- ABB Robot Miller AutoInvision 450 Mig Welder with rotary Weld positioner
-ABB Robot Fronius 3200 Mig Aluminum welder with Headstock positioner and integrated material handler ABB Robot
- Mig welding Aluminum, Steel, Stainless
- Tig welding Aluminum, Steel, Stainless, Chromoly
- Rotary weld positioners for a clean single start/stop round work
- AWS Certified
Material Cutting
- CNC Plasma Table 48 x 96"
Machining/Milling
Fadal 4020 VMC with 4th axis
Material bending
Baileigh Industrial RDB-350 Rotary Draw Bender
Capabilities range from 3/8 round up to -
- Mild Steel Pipe (Schedule 40) 2.5"
- Aluminum Pipe (Schedule 40) 3"
- Stainless Steel Pipe (Schedule 40) 2"
- Mild Steel Round Tube (Wall) 3" (.187)
- Aluminum Round Tube (Wall) 3.5" (.250)
- Stainless Steel Round Tube (Wall) 3" (.125)
- Chromoly Round Tube (Wall) 2.5" (.125)
- Mild Steel Solid Rod 1.5"
- Mild Steel Square Tube (Wall) 3" (.125)
-Positioning table produces multi bend on/off plane to each other
Our Bending Die library holds at least the following sets, more are continually added. Please inquire if you don't see your particular requirements listed.
T-0.375 x 2.0
T- 0.500 x 1.5
T-0.750 x 3
T-1.00x3.5
T-1.250 x 4
T-1.625 x6
P-1.0 x 4.0
P-1.250 x 3.0
SQ 1.0x3.75
SQ 1.25x3.5
T=tube
P=pipe
SQ= Square tube
Click here to see a sample of the tooling available for this bender.http://metal.baileighindustrial.com/media/uploads/documents/rdb-350-tooling-list.pdf
Capabilities range from 3/8 round up to -
- Mild Steel Pipe (Schedule 40) 2.5"
- Aluminum Pipe (Schedule 40) 3"
- Stainless Steel Pipe (Schedule 40) 2"
- Mild Steel Round Tube (Wall) 3" (.187)
- Aluminum Round Tube (Wall) 3.5" (.250)
- Stainless Steel Round Tube (Wall) 3" (.125)
- Chromoly Round Tube (Wall) 2.5" (.125)
- Mild Steel Solid Rod 1.5"
- Mild Steel Square Tube (Wall) 3" (.125)
-Positioning table produces multi bend on/off plane to each other
Our Bending Die library holds at least the following sets, more are continually added. Please inquire if you don't see your particular requirements listed.
T-0.375 x 2.0
T- 0.500 x 1.5
T-0.750 x 3
T-1.00x3.5
T-1.250 x 4
T-1.625 x6
P-1.0 x 4.0
P-1.250 x 3.0
SQ 1.0x3.75
SQ 1.25x3.5
T=tube
P=pipe
SQ= Square tube
Click here to see a sample of the tooling available for this bender.http://metal.baileighindustrial.com/media/uploads/documents/rdb-350-tooling-list.pdf
Tube Notching

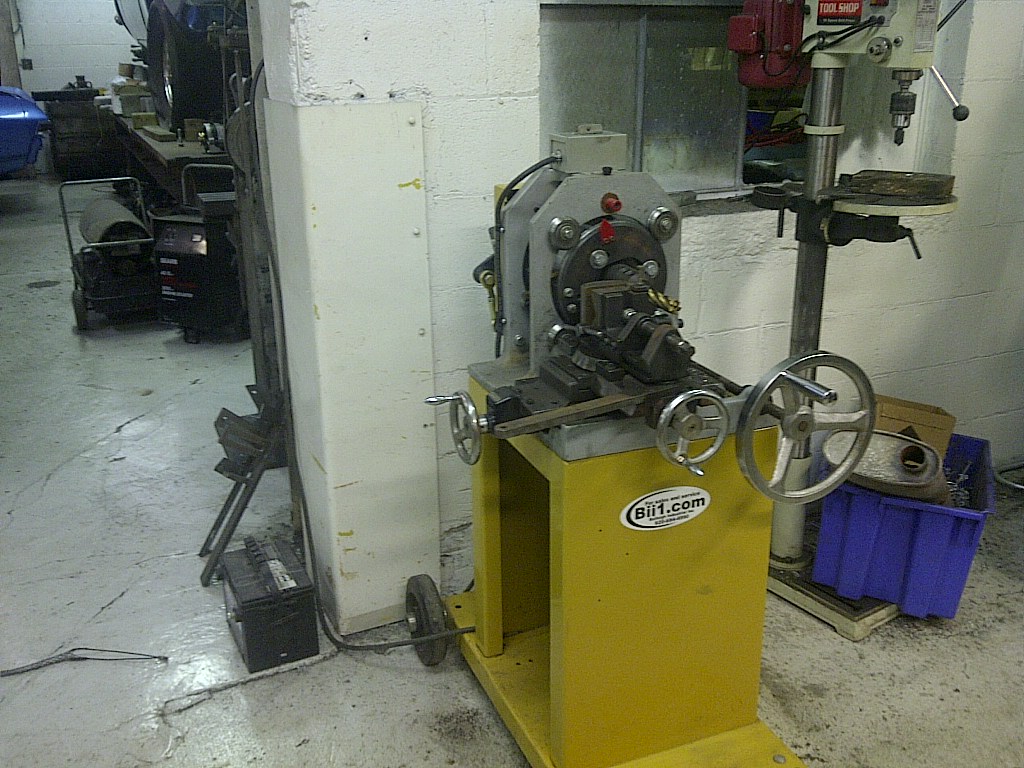

We offer tube notching with our Baileigh Industrial TN-800 Notcher.
- from 1/2"OD up to 3"OD
- from 1/2"OD up to 3"OD
Other Services
Forming
1 10' x 120 ton Amada HFE 100-3 7 Axis precision press brake
1 8' x 90 ton Amada RG-80 3-Axis precision press brake
2 8' x 35 ton Diacro single Axis production press brakes
1 8' x 45 ton Chicago press brake
1 36" 2-1/2" Dia initial pinch roller
1 14"dia Diacro tube bender
Punching - Cutting
1 Barcorp 1/4" x 10' capacity shear
1 Strippit FC1250S 33 station CNC turret punch press
1 Strippit FC1000S 33 station CNC turret punch press
1 Strippit Super-30 30 ton manual table gauged punch press for short runs
1 50 ton Piranha iron worker
1 45 ton OBI punch press
1 10' x 120 ton Amada HFE 100-3 7 Axis precision press brake
1 8' x 90 ton Amada RG-80 3-Axis precision press brake
2 8' x 35 ton Diacro single Axis production press brakes
1 8' x 45 ton Chicago press brake
1 36" 2-1/2" Dia initial pinch roller
1 14"dia Diacro tube bender
Punching - Cutting
1 Barcorp 1/4" x 10' capacity shear
1 Strippit FC1250S 33 station CNC turret punch press
1 Strippit FC1000S 33 station CNC turret punch press
1 Strippit Super-30 30 ton manual table gauged punch press for short runs
1 50 ton Piranha iron worker
1 45 ton OBI punch press
